KEM Karl Fischer Moisture Titrator (Volumetric titration) MKV-710M


KEM Karl Fischer Moisture Titrator (Volumetric titration) MKV-710M

Large color TFT-LCD with a touch panel (8.4-inch) enables easy key entry

Up to 4 titrators, AT-710B potentiometric titrators, MKC-710B Coulometric or MKH-710/2nd Hybrid or additional MKV-710B Volumetric Karl Fischer moisture titrators can be connected and simultaneous measurement is possible

Can resume titration automatically after interruption


・New burette unit

The new burette unit has the switching valve mounted directly on top of the

cylinder. Less dead space between the switching valve and the cylinder and it

inside of the cylinder left less residual titrant when replacing it.

・No need to adjust settings for different types of solvent and samples

Our proprietary technology (endpoint detection by compensating liquid resistance, Japanese Patent No.1896338) makes it unnecessary to change the detection electrode sensitivity and the endpoint voltage depending on the nature of each solvent and sample.

This feature reliably prevents over titration and ensures highly accurate measurements.

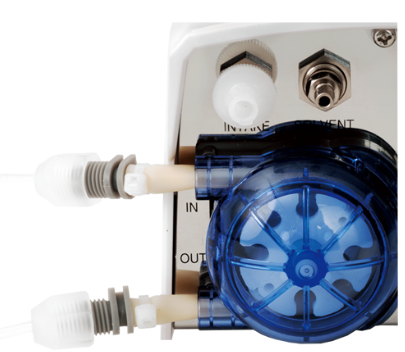

・Easy injection/drain of dehydrated solvent

The stirrer unit is equipped with a pump for injecting/

draining dehydrated solvent.

Once you set the operating time of the pump with the internal timer, the optimum quantity of the solvent is automatically injected.

  • The MKV-710M contains functions to support compliance with the following:

・European Pharmacopoeia Chapter 2.5.12. WATER: SEMI-MICRO DETERMINATION: SUITABILITY

・Japanese Pharmacopoeia Eighteenth Edition Chapter 2.48: Water determination (Karl Fischer Method):

　1.4 Suitability of determination

  • Titrant Information is stored in an IC chip in the burette unit (Smart burette)
  • New burette unit
  • Up to 4 simultaneous measurements (Simultaneous titrations)
  • Can be connected to AT-710B potentiometric titrators, MKC-710B Coulometric Karl Fischer moisture titrators or MKH-710/2nd Hybrid Karl Fischer moisture titrators
  • The main control unit and a titrator are separately located by wireless (Bluetooth(R))
  • Large color TFT-LCD with a touch panel (8.4-inch)
  • Two different user levels and permissions
  • Measurement results are converted to PDF and can be stored in a USB flash drive
  • When using ADP-611 , a patented scan mode automatically determines the optimal evaporation temperature. (Japanese Patent No. 4247093)
  • End point detection by compensating liquid resistance is adopted. (Japanese Patent No. 1896338)
  • Can resume titration automatically after interruption
  • Automatic solvent change unit is included
