UTCM- 0280
Automatic Blaine Air Permeability Apparatus, 110-230V, 50-60 Hz, 1ph

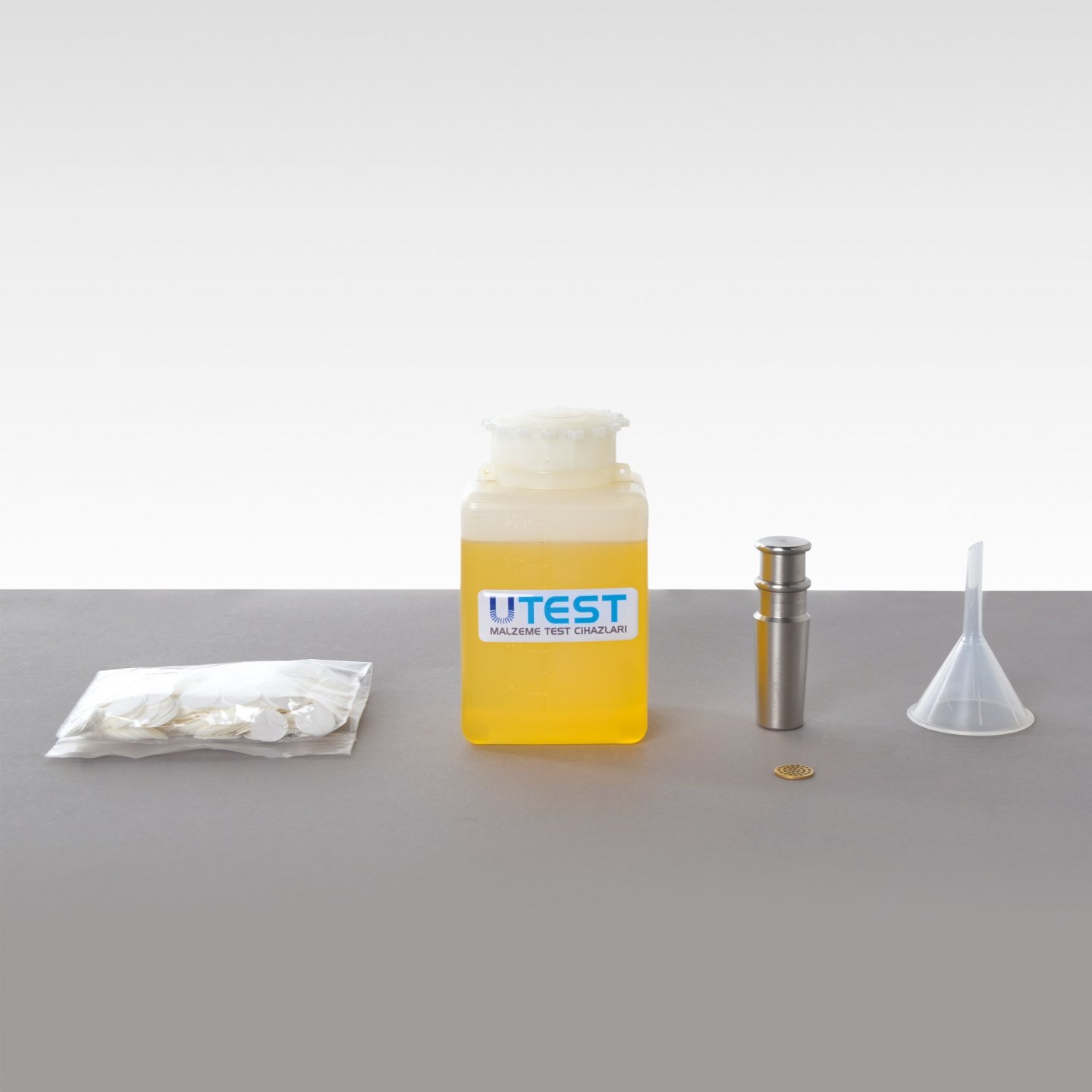

UTCM- 0242
Manometer Liquid 250 ml
UTCM- 0243
Cell with Perforated Disc and Plunger
UTCM- 0244
Filter Paper 100 pcs.
UTCM- 0245
Filter Paper 1000 pcs.
UTCM- 0246
Reference Cement 5 g, ASTM
UTCM- 0282
Reference Calibration Sand – Fine, Approx. 100g
UTCM- 0284
Reference Calibration Sand - Coarse, Approx. 100g
EN 196-6; ASTM C204; BS 4550

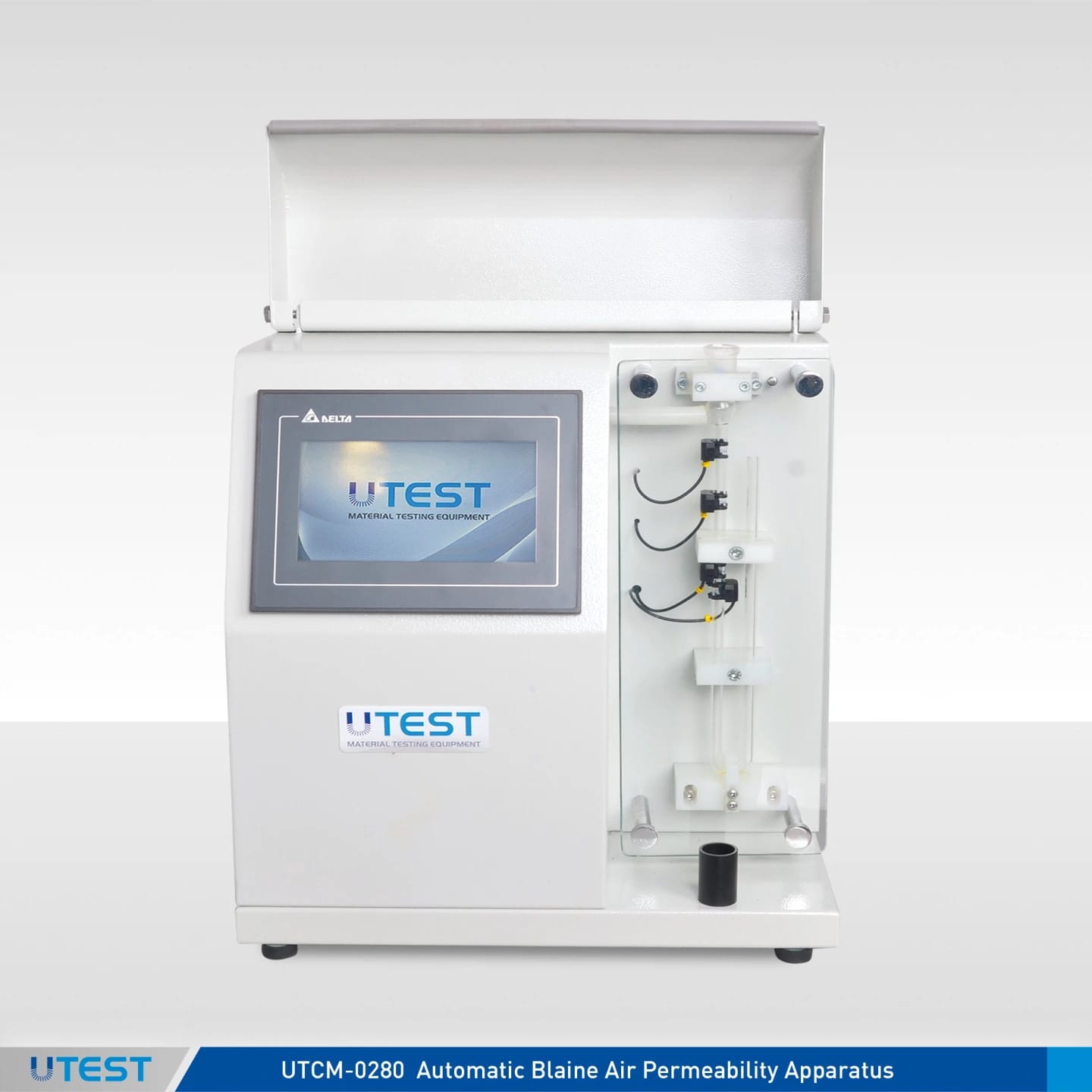

The UTCM- 0280 Automatic Blaine Air Permeability Apparatus perform the test for determining the fineness of cements, limes and similar powders expressed in terms of their specific surface according to the above testing standards. The fineness of cement can be automatically measured as specific surface by observing the time taken for a fixed quantity of air to flow through a compacted cement bed of specified dimensions and porosity.The method is comparative rather than absolute and therefore a reference sample of known specific surface is required for calibration of the apparatus.
Main Features
· The test is controlled on the touch screen.
· Automatic control of the movement of fluid until the upper line
· Automatic measurement of the air flow time
· Automatic measurement of temperature during the test
· Languages (English, Spanish, Russian, Turkish)
Reference Cement and Reference Calibration Sands should be ordered separately.
