Battery life:15 days (typical) @ 5 readings a day / 5 day week without backlight*
* Backlight usage will decrease battery life.
Battery requirements:4 AA size batteries
Cuvette compatibility:10 mm square / 1 inch square and
13 mm / 1 inch round
13 mm and 1 inch round 10 x 10 mm 1 inch square
adapter for round vials and 10x10mm
Data storage:500 measured values (Result, Date, Time, Sample ID, User ID acc. to GLP)
Detector:Silicon photodiode
Dimensions (H x W x D):98 mm x 178 mm x 267 mm
Display:Graphical display 240 x 160 pixel (LCD, b/w, backlit)
Enclosure waterproof rating:IP67
Environmental conditions: relative humidity:Max. 80 % relative humidity (non-condensing)
Environmental conditions: temperature:10 - 40 °C
Interface:USB type Mini IP67 (with optional Module)
Operating conditions:10 - 40 °C, max. 80 % relative humidity (non-condensing)
Operating mode:Transmittance (%), Absorbance and Concentration
Optical system:Reference beam, spectral
Photometric accuracy:± 0.003 Abs @ 0.0 - 0.5 Abs
Photometric linearity:< 0.5 % (0.5 - 2.0 Abs)
Photometric measuring range:0 - 3 Abs (wavelength range 340 - 800 nm)
Power Module?:No
Power supply:110 - 240 V / 50/60 Hz (* optional Module required. May not be avaliable in all region)
4 x AA size Alkaline
4x NiMH rechargeable Battery*
Power supply*: 110 - 240 V; 50/60 Hz
(* optional Module required.
May not be available in all regions)
4x NiMH rechargeable Battery (* optional Module required. May not be avaliable in all region)
Pre-programmed methods:220 (Please note: LCK cuvette tests can be evaluated, but without 10-fold rotational measurement and barcode readers.)
Reproducibility:± 0.005 Abs (0 - 1 A)
Source lamp:Xenon Flash
Storage conditions:-30 - 60 °C (-30 - 140 °F), max. 80 % relative humidity (non-condensing)
Stray light:< 0.5 %T at 340 nm with NaNO2
Temperature range:0 - 50 °C
User interface:English, French, German, Italian, Spanish, Portuguese, Bulgarian, Chinese, Czech, Danish, Dutch, Finnish, Greek, Hungarian, Japanese, Korean, Polish, Romanian, Russian, Slovenian, Swedish, Turkish
User programmes:50
Warranty:24 months
Wavelength accuracy:± 2 nm (range 340 - 800nm)
Wavelength calibration:Automatic
Wavelength range:340 - 800 nm
Wavelength selection:Automatic
Weight:1.5 kg

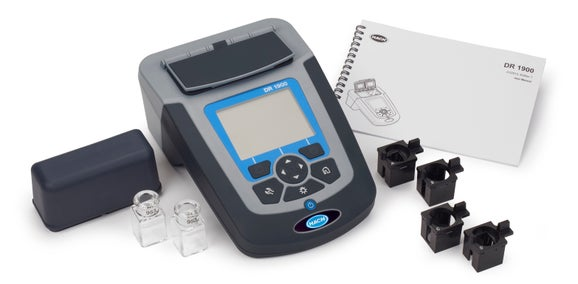

What's included?:Includes: portable spectrophotometer, printed basic instrument manual, dust cover, 1-in. square matched glass sample cells, AA alkaline batteries 4/pk, and a four-type adapter set.
