UTCM-0660A

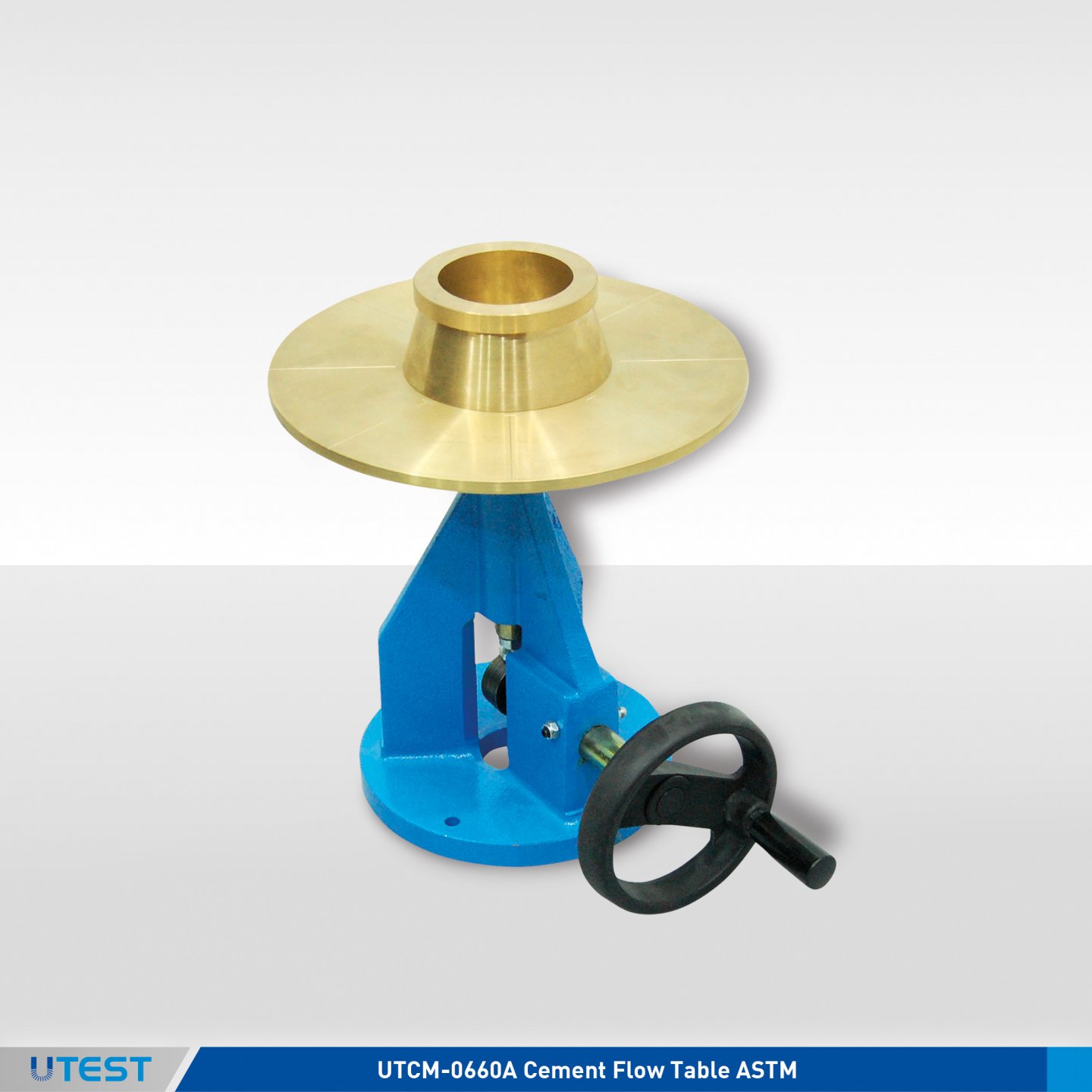

Cement Flow Table ASTM, Metric
UTCM-0661A

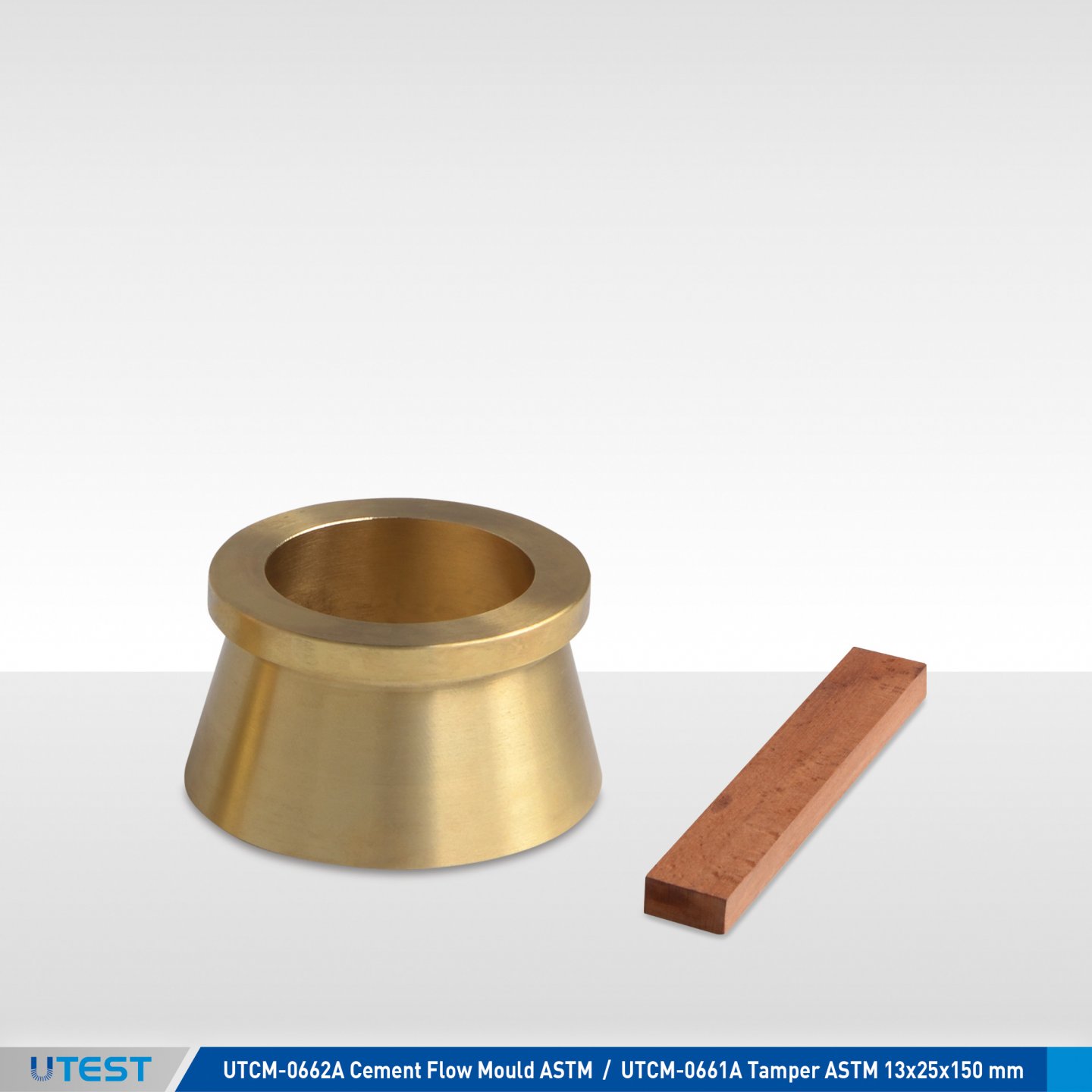

Cement Flow Mould ASTM, Metric
UTCM-0662A
Tamper ASTM Hardwood
13x25x150 mm
UTCM-0663A

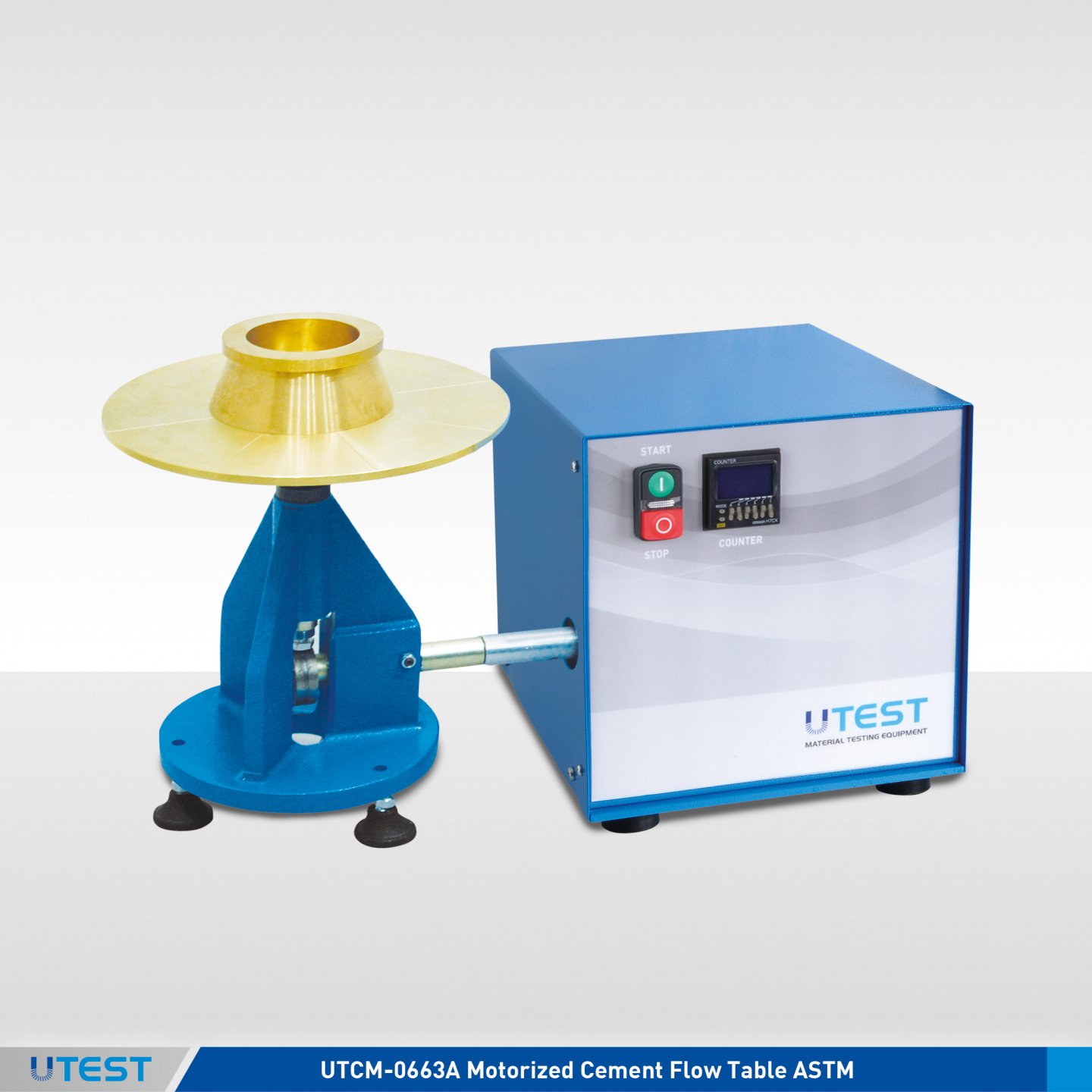

Motorized Cement Flow Table ASTM
UTCM-0660E

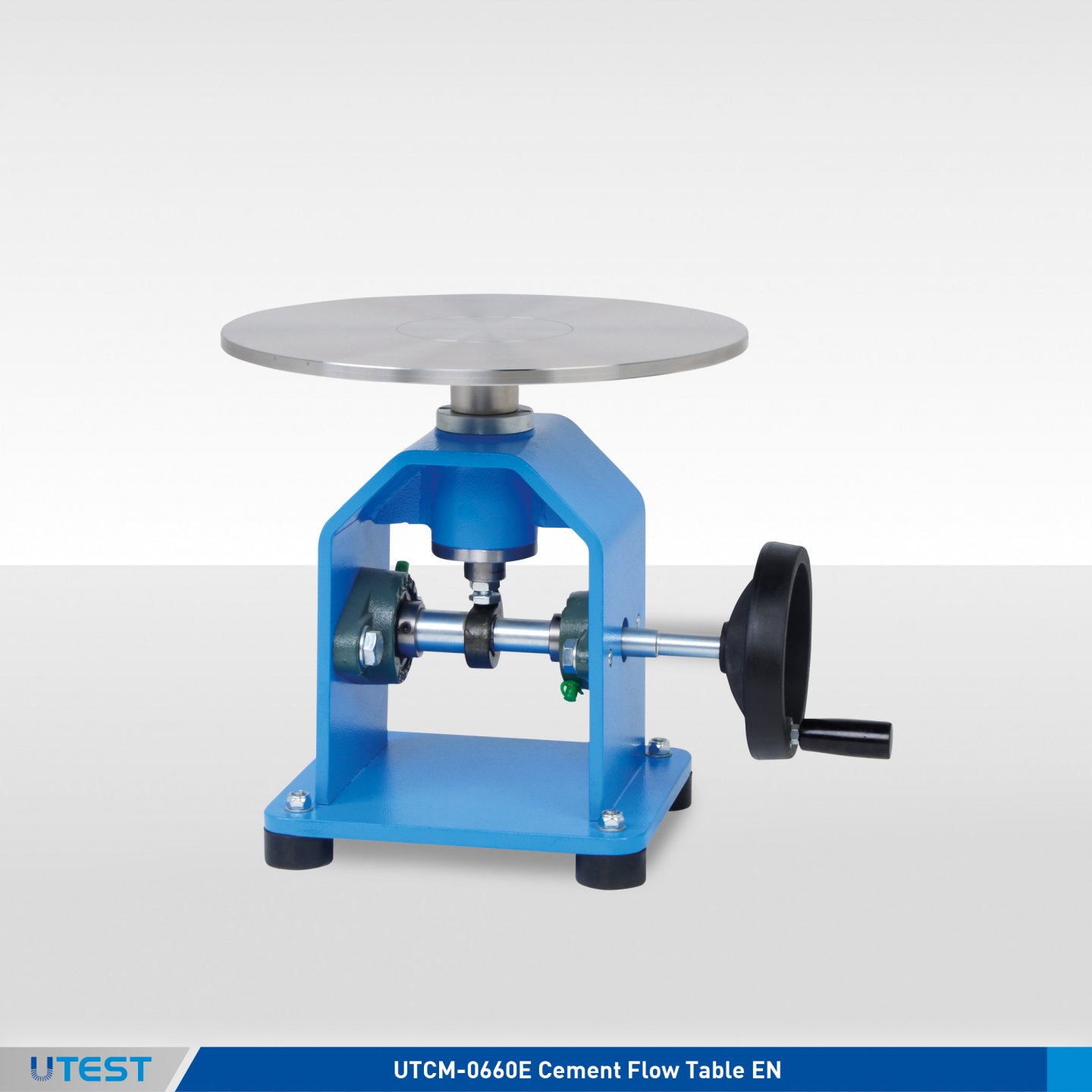

Cement Flow Table EN
UTCM-0661E

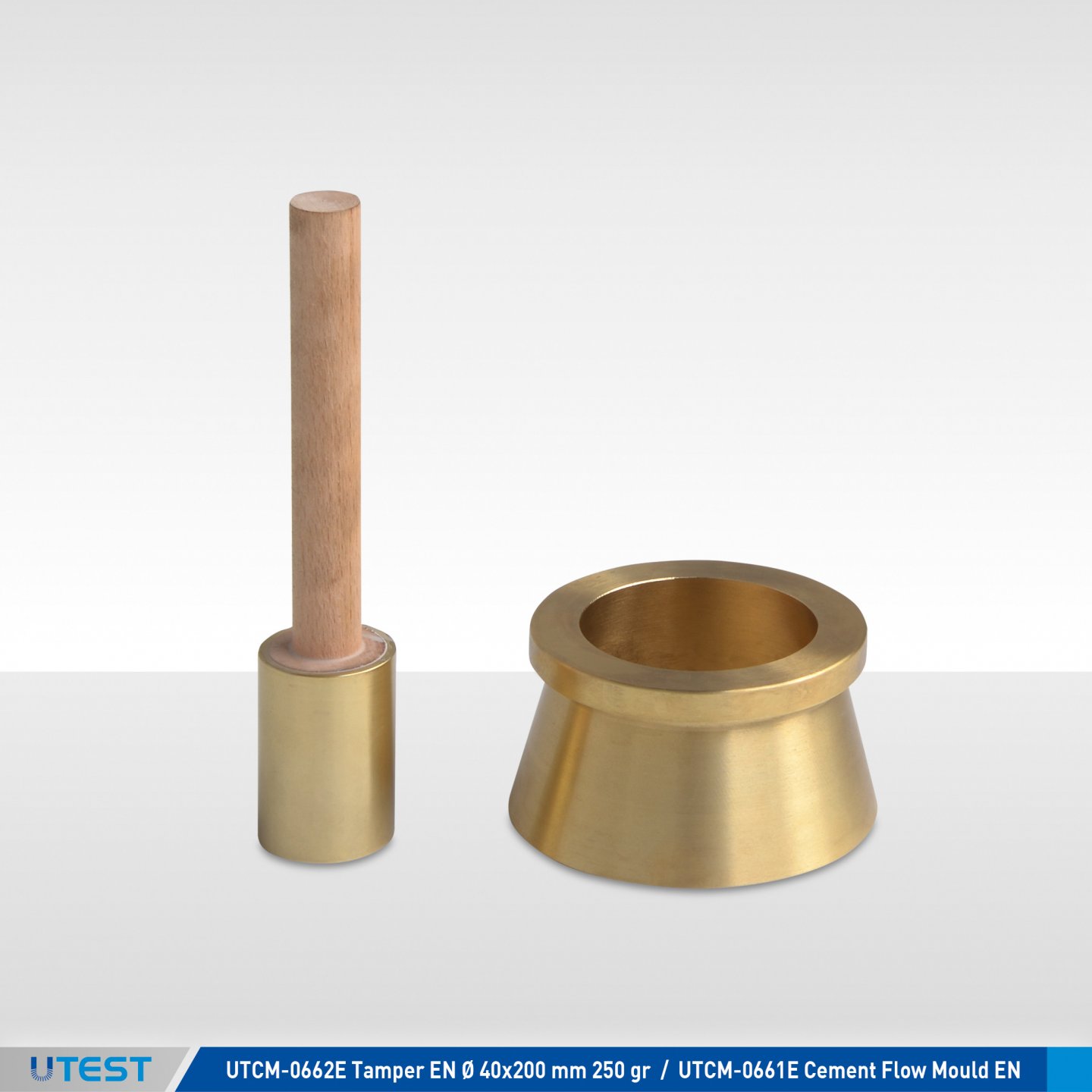

Cement Flow Mould EN
UTCM-0662E
Tamper EN Ø 40x200 mm 250 gr
UTCM-0663E
Motorized Cement Flow Table EN
ASTM C230; EN 459-2, 1015-3
There are two models of the Cement Flow Table according to ASTM and EN standard. Both are used for determining the consistency of mortar, lime and cement specimens. Also manual and motorized models are available.
The hand operated model is fitted with a hand wheel. The motor operated model is driven by a motor speed reducer through a mechanical coupling at the rate of 1 revolution per second. The number of drops is preset on a counter and the machine stops automatically at the end of the cycle.
EN model, the table is manufactured from stainless steel and has a 300 mm diameter table. The conical mould is made of stainless steel and has dimensions of 100 mm base dia. x 70 mm top dia. x 60 mm height.
ASTM model; the table is manufactured from bronze and has 254 mm diameter. The conical mould is made of brass has dimensions of 100 mm base dia. X 70 mm top dia. X 50 mm height.
Both models are supplied complete with stainless steel flow mould and tamper. EN model also has a stainless steel hopper.
