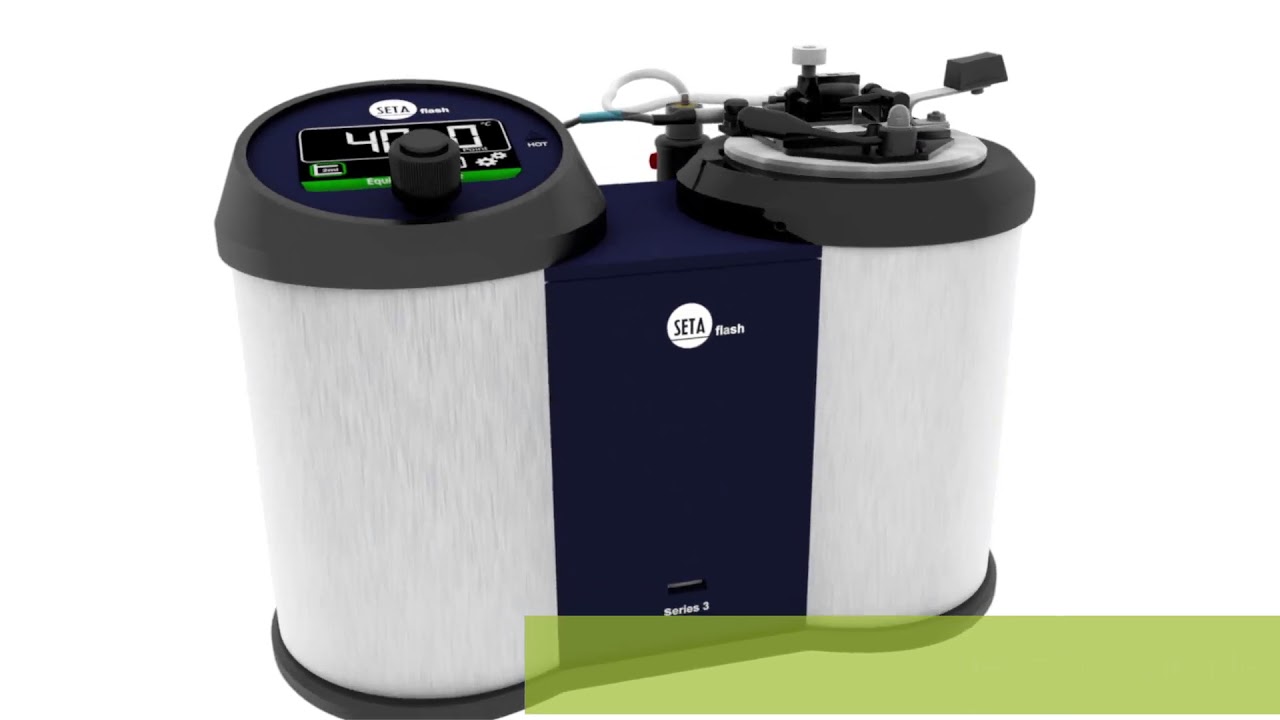

The Setaflash Series 3e closed cup flash point tester is a compact, bench top/portable instrument used to carry out ‘flash/no flash’ tests and determine flash point temperatures.
The Series 3e can perform tests at temperatures ranging from 0 to 300 °C (with the 13870-0 Seta Cooling Module allowing temperatures below ambient).
Operated by a touchscreen, icons guide you through the simple test procedure, with a test taking less than 2 minutes with just 2 or 4 ml of sample required. Up to 10,000 test results can be saved in the instruments internal memory which can be saved and transferred via USB port for data analysis.
SPECIFICATIONS
TEMPERATURE RANGE: Ambient to 300 °C
TEMPERATURE RAMP MODE: Automatic or custom settings (ramp rate: up to 6 °C/min and beep rate: up to 5 °C/B intervals) Extended test range, 100 °C from start temperature
TEMPERATURE SELECTION: °C or °F
USER INTERFACE: Colour LCD display - touch screen sensitive
NAVIGATION: Control knob (rotational and push-down)
DATA STORAGE: 1GB (internal memory and integrated USB port)
SAMPLE SIZE: 2 ml or 4 ml
PRESSURE CORRECTION: Automatic pressure correction
VOLTAGE: 110 to 250 V a.c~50/60 Hz (universal)
POWER : 200 W (Max.)
SIZE (HXWXD): 19.5 cm x 29.5 cm x 14 cm
WEIGHT: 3 kg
